Operator Comfort
The four post ROPS canopy on the TB216 offers operator protection and peace of mind during operation.
Serviceability

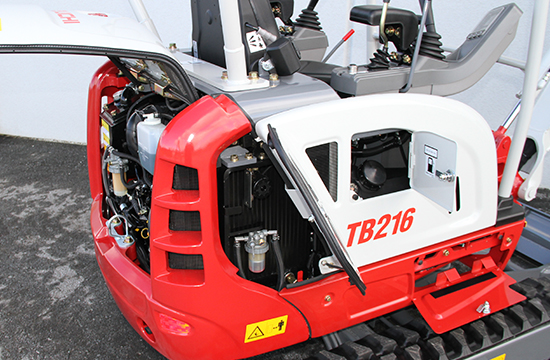

The lockable fuel cap provides added security, and the remote fuel fill gauge makes refilling easy and convenient.
Durability
All hoses on the TB216 are routed through the boom and arm for an extra level of protection and greater visibility of the working equipment.
Performance
The TB216 delivers excellent size and balance for limited space job sites.
Machine Specs and Dimensions
TB216 Specs
| OPERATING PERFORMANCE | ||
|---|---|---|
| Operating Weight | 3,900 lb | (1,770 kg) |
| Max. Bucket Breakout Force | 4,250 lb | (1,928 kg) |
| Max. Arm Digging Force | 1,843 lb | (836 kg) |
| Arm Length | 3 ft 8.5 in | (1,130 mm) |
| Slew Speed | 9.2 rpm | |
| Traction Force | 4,361 lb | (1,978 kg) |
| Ground Pressure | 4.3 psi | 29.4 kPa |
| Travel Speed - Low | 1.4 mph | (2.2 km / hr) |
| Travel Speed - High | 2.6 mph | (4.2 km / hr) |
| HYDRAULIC SYSTEM | ||
| Total Hydraulic Flow | 13.4 gpm | (50.9 L / min) |
| Auxiliary Hydraulic Flow | 8.9 gpm | (33.6 L / min) |
| Hydraulic System Pressure | 3,046 psi | (21.0 Mpa) |
| ENGINE | ||
| Model / Make | Yanmar / 3TNV74 | |
| Displacement | 60.2 cu in | (.98 L) |
| Horsepower @ 2,400 rpm | 15 hp | (11.2 kW) |
| Max. Torque @ 1,800 rpm | 38.2 ft-lb | (51.8 Nm) |
| FLUID CAPACITIES | ||
| Engine Lubrication | 4.5 qt | (4.3 L) |
| Cooling System | 4.0 qt | (3.8 L) |
| Fuel Tank Capacity | 5.8 gal | (22.0 L) |
| Hydraulic Reservoir Capacity | 4.2 gal | (16.0 L) |
| Hydraulic System Capacity | 6.5 gal | (24.5 L) |
TB216 Dimensions
| MACHINE DIMENSIONS | ||
|---|---|---|
| Maximum Reach | 13 ft 5.0 in | (4,090 mm) |
| Maximum Reach at Ground Level | 13 ft 2.9in | (4,035 mm) |
| Maximum Digging Depth | 7 ft 10.0 in | (2,390 mm) |
| Maximum Vertical Digging Depth | 6 ft 9.1 in | (2,060 mm) |
| Maximum Dig Height | 12 ft 3.2 in | (3,740 mm) |
| Maximum Dumping Height | 8 ft 10.5 in | (2,705 mm) |
| Front Swing Radius | 4 ft 10.3 in | (1,480 mm) |
| Front Swing Radius with Boom Offset | 3 ft 9.4 in | (1,155 mm) |
| Tail Swing (Slew) Radius | 3 ft 6.3 in | (1,075 mm) |
| Transport Length | 12 ft 8.3 in | (3,870 mm) |
| Transport Height | 7 ft 4.8 in | (2,255 mm) |
| Ground Clearance | 8.1 in | (205 mm) |
| Undercarriage Length | 4 ft 11.9 in | (1,520 mm) |
| Track Width (Rubber) | 9.0 in | (230 mm) |
| Undercarriage Width - Track Retracted | 38.6 in | (980 mm) |
| Undercarriage Width - Track Extended | 51.2 in | (1,300 mm) |
Machine Features
TB216 Features
| ENGINE |
|---|
| EPA Final Tier 4 Emission Compliant |
| Engine Preheat |
| Dual Element Air Filters |
| Automatic Fuel Bleed System |
| ELECTRICAL |
| Multi-Informational Display |
| Visual Indicator for Engine Preheat, High Speed, Water Temp and Fuel Gauge |
| Function Keys Transition Between Hour / Trip Meter, Time and Alarm, and Contrast Adjustment |
| Hour Meter |
| Travel Alarm |
| UNDERCARRIAGE AND FRAME |
| Triple Flanged Track Rollers |
| Hydraulically Retractable Track Frame |
| Automatic Load Sensing 2 Speed Travel |
| Adjustable Width Backfill Blade |
| Cast Iron Wrap Around Protective Counterweight |
| 9" Rubber Track |
| OPERATOR'S STATION |
| ROPS / TOPS / FOPS Four Post Canopy |
| Pattern Change Valve (ISO or SAE) |
| Suspension Seat with Fore and Aft Adjustments |
| Auxiliary Hydraulics Controlled with Foot Pedal |
| 2" Retractable Seat Belt |
| 3" Non-retractable Seat Belt (optional) |
| HYDRAULIC & WORKING EQUIPMENT |
| Variable Displacement Piston Pumps |
| Cushioned Boom and Swing Cylinders |
| Pilot Operated Joystick Controls |
| Hydraulic Oil Cooler |
| Steel Hydraulic Tank with Fluid Level Sight Gauge |
| Primary Auxiliary Circuit Plumbed to Arm with 1-Way and 2-Way Operation |
| Top Mount Boom Cylinder |
| Hydraulic Hoses Protected Inside of Boom and Arm |
| Long Arm with Integrated Thumb Mount |
| Dual Pin Position Bucket (optional) |
| Mechanical Bucket Quick Coupler (optional) |
| Main Pin Hydraulic Thumb (optional) |
FEATURES AND BENEFITS
Takeuchi Fleet Management
- 2 Year Standard Service
- Minimize Downtime
- Remote Diagnostics
- Utilization Tracking
- Proactive Maintenance
- Control Costs
- Geofencing
Function and Efficiency
- The variable displacement axial piston pump delivers smooth, harmonized control of the work equipment with no reduction in speed.
- The standard long arm with integrated thumb mount provides you with a wider working range, dig depth, and simplifies thumb installation.
- Load sensing, two speed travel down shifts from low torque/high speed mode to high torque/low speed travel automatically when turning, pushing dirt, or traveling up an incline.
- Cushioned cylinders improve longevity by reducing shock and they reduce felt recoil to the operator for greater comfort.
Increased Protection
- Top mounted boom cylinder and hydraulic lines routed through the boom and arm ensures exceptional protection from job site hazards.
- All steel construction ensures body integrity through greater strength and rigidity and protects key components from damage.
- Heavy duty counterweight protects vital engine and hydraulic components from damage.
- Triple flange track rollers improve track life by providing greater support, and they feature multiple contact points that reduce the risk of de-tracking.
Operator Focused
- Pilot controls are low effort and precise.
- ISO/SAE pattern change valve allows you to choose your preferred operational controls.
- Suspension seat reduces operator fatigue and features fore/aft, tilt, and weight adjustments.
- Multifunction, LED monitor provides the operator with machine vitals.
Ease of Maintenance
- The overhead opening engine hood and multiple access panels provide excellent access to daily maintenance and inspection points.
Peace of Mind
- The safe start system requires the safety lockout lever be in the raised position in order to start the excavator ensuring hydraulic functions are inactive at start-up.
Compact Design
- A retractable undercarriage and compact dimensions allow you to access job sites with limited access.
