Operator Comfort
The TB235-2 comes standard with a deluxe high back suspension seat that provides weight adjustments and a retractable seat belt.
Serviceability
An improved fuel filtration system and the use of low sulfur fuel will ensure proper engine performance.
Durability
Triple flange track rollers provides increased roller to rail contact improving track retention.
Performance
The TB235-2 has powerful arm crowd and bucket breakout forces provide an outstanding blend of performance, speed, power, and versatility.

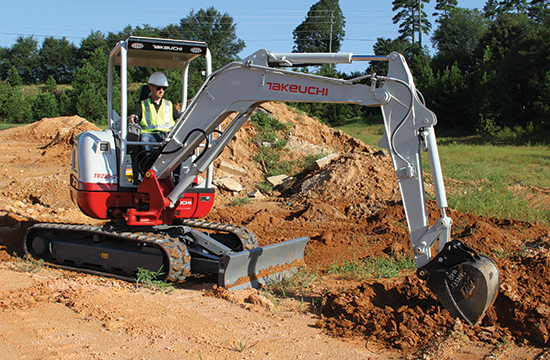

TB235-2
Compact Mini Excavator
Ease of transport and an excellent working range make the TB235-2 a great choice for utility work, landscaping and construction. The TB235-2 has all steel construction to ensure long-term durability, a multi-information display that provides the operator with outstanding functionality, and large access panels for easy routing maintenance and inspection. The TB235-2 is a well-appointed excavator that delivers the power and performance you expect from Takeuchi.
Machine Specs and Dimensions
TB235-2 Specs
| OPERATING PERFORMANCE | ||
|---|---|---|
| Operating Weight (Canopy) | 7,418 lb | (3,365 kg) |
| Operating Weight (Cab) | 7,639 lb | (3,465 kg) |
| Maximum Bucket Breakout Force | 9,127 lb | (4,140 kg) |
| Maximum Arm Digging Force | 3,889 lb | (1,764 kg) |
| Arm Length | 4 ft 9.0 in | (1,445 mm) |
| Slew Speed | 9.3 rpm | |
| Traction Force | 9,112 lb | (4,130 kg) |
| Ground Pressure (Canopy) | 4.4 psi | (30.4 kPa) |
| Ground Pressure (Cab) | 4.6 psi | (31.4 kPa) |
| Travel Speed - Low | 1.7 mph | (2.8 km / hr) |
| Travel Speed - High | 2.6 mph | (4.2 km / hr) |
| HYDRAULIC SYSTEM | ||
| Total Hydraulic Flow | 28.6 gpm | (108.4 L / min) |
| Auxiliary Flow - Primary Circuit | 15.8 gpm | (60.0 L /min) |
| Hydraulic System Pressure | 3,553 psi | (24.5 MPa) |
| ENGINE | ||
| Make / Model | Yanmar / 3TNV88F | |
| Displacement | 100.0 cu in | (1.6 L) |
| Horsepower @ 2,400 rpm | 24.4 hp | (18.2 kW) |
| Maximum Torque @ 1,440 rpm | 68.0 ft-lb | (92.2 Nm) |
| FLUID CAPACITIES | ||
| Engine Lubrication | 5.0 qt | (4.7 L) |
| Cooling System | 4.2 qt | (4.0 L) |
| Fuel Tank Capacity | 12.2 gal | (46.0 L) |
| Fuel Consumption (65% of Full Load) | 0.90 gal / hr | (3.4 L / hr) |
| Hydraulic Reservoir Capacity | 9.2 gal | (35.0 L) |
| Hydraulic System Capacity | 18.0 gal | (68.0 L) |
TB235-2 Dimensions
| MACHINE DIMENSIONS | ||
|---|---|---|
| Maximum Reach | 17 ft 2.9 in | (5,255 mm) |
| Maximum Reach at Ground Level | 16 ft 10.0 in | (5,130 mm) |
| Maximum Digging Depth | 10 ft 7.8 in | (3,245 mm) |
| Maximum Vertical Digging Depth | 8 ft 2.2 in | (2,495 mm) |
| Maximum Dig Height | 16 ft 5.2 in | (5,010 mm) |
| Maximum Dumping Height | 11 ft 9.5 in | (3,595 mm) |
| Front Swing Radius | 6 ft 6.9 in | (2,005 mm) |
| Front Swing Radius with Boom Offset | 5 ft 5.4 in | (1,660 mm) |
| Tail Swing (Slew) Radius | 4 ft 4.4 in | (1,330 mm) |
| Transport Length | 16 ft 0.9 in | (4,900 mm) |
| Transport Height | 8 ft 2.8 in | (2,510 mm) |
| Ground Clearance | 11.6 in | (295 mm) |
| Undercarriage Length | 6 ft 11.1 in | (2,110 mm) |
| Track Width (Rubber) | 11.8 in | (300 mm) |
| Undercarriage Width | 5 ft 2.2 in | (1,580 mm) |
Machine Features
TB235-2 Features
| ENGINE |
|---|
| EPA Final Tier 4 |
| Automatic Fuel Bleed System |
| Dual Element Air Filter |
| Automatic Idle |
| ELECTRICAL |
| LCD Multi-Informational Display (Canopy) |
| 5.7" Multi-Informational Display (Cab) |
| Sealed Rocker Switches |
| 12 volt System with 55 amp Alternator |
| Halogen Work Lights: Two Forward Facing |
| Engine Preheat |
| Hour Meter |
| Travel Alarm |
| Horn |
| UNDERCARRIAGE AND FRAME |
| Triple Flanged Track Rollers |
| Automatic Load Sensing 2 Speed Travel |
| Sloped Frame with Open Centers |
| Heavy Duty Dozer Blade with Float |
| Large Wrap Around Counterweight |
| 11.8" Rubber Tracks |
| Power Angle Blade with Float and Bolt-on Cutting Edge (optional) |
| OPERATOR'S STATION |
| ROPS / TOPS / OPG Four Post Canopy |
| Deluxe High Back Suspension Seat |
| Adjustable Arm Rests |
| 2" Retractable Seat Belt |
| 3" Retractable Seat Belt (optional) |
| Cab with A/C, Heat, Defrost, Windshield Wiper and Washer, Skylight with Sunshade, AM / FM / MP3 Radio, 12v Power Outlet (optional) |
| HYDRAULIC & WORKING EQUIPMENT |
| Variable Displacement, Open Center Hydraulics |
| Cushioned Boom and Swing Cylinders |
| Hydraulic Pilot Controls |
| Proportional Auxiliary Controls with Detent |
| Auxiliary Flow Adjustable from Operator's Seat |
| Hydraulic Reservoir with Fluid Level Sight Gauge |
| Primary Auxiliary Hydraulic Circuit Plumbed to Mid-Arm |
| Multiple Attachment Presets |
| Flow Selector Valve |
| Pattern Change Valve (ISO or SAE) |
| Pilot Accumulator |
| Long Arm with Integrated Thumb Mount |
| Main Boom Cylinder Guard |
| Dual Pin Position Bucket (optional) |
| Mechanical Bucket Quick Coupler (optional) |
| Main Pin Hydraulic Thumb (optional) |
FEATURES AND BENEFITS
Compact Design
- Enables you to work in a wide range of applications and the conventional tail swing provides greater stability and larger operator’s station.
Peace of Mind
- The safe start system requires the safety lockout lever be in the raised position in order to start the excavator ensuring hydraulic functions are inactive at start-up.
Increased Protection
- All steel construction ensures body integrity through greater strength and rigidity and protects key components from damage.
- Heavy duty counterweight protects vital engine and hydraulic components from damage.
- Triple flange track rollers improve track life by providing greater support, and they feature multiple contact points that reduce the risk of de-tracking.
Operator Focused
- Multifunction, LED monitor provides the operator with machine vitals, flow adjustments, and attachment presets.
- Electronic dial type throttle control allows the operator to quickly adjust engine speed, and the automatic engine idle feature will reduce engine speed to low idle automatically should the machine idle more than several seconds.
Function and Efficiency
- The lower horsepower rating of the TB235-2 does not require the use of a DOC/DPF exhaust aftertreatment system.
- The variable displacement axial piston pump delivers smooth, harmonized control of the work equipment with no reduction in speed.
- The standard long arm with integrated thumb mount provides you with a wider working range, dig depth, and simplifies thumb installation.
- Load sensing, two speed travel down shifts from low torque/high speed mode to high torque/low speed travel automatically when turning, pushing dirt, or traveling up an incline.
- Large slew bearing provides greater longevity and stability over the life of the machine.
- Cushioned cylinders improve longevity by reducing shock and they reduce felt recoil to the operator for greater comfort.
Takeuchi Fleet Management
- 2 Year Standard Service
- Minimize Downtime
- Remote Diagnostics
- Utilization Tracking
- Proactive Maintenance
- Control Costs
- Geofencing
Ease of Maintenance
- Rear hood and right side cover open high overhead providing exceptional access to inspection and maintenance points.
