Operator Comfort
The pilot operated joystick controls deliver precise and responsive movements that are low effort and reduces fatigue.
Serviceability
The side-by-side radiator and hydraulic oil cooler increases cooling capacity and are easy to inspect, clean and maintain.
Durability

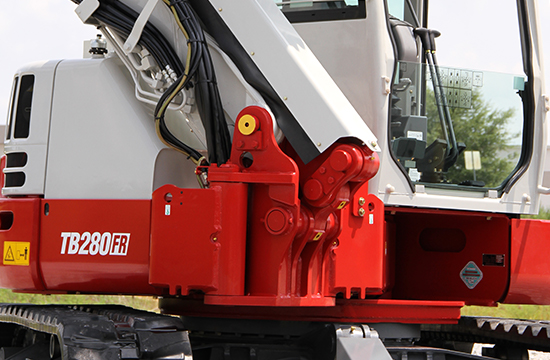

The heavy duty offset boom structure uses four large kingpins to distribute shock and forces through the main frame for exceptional durability.
Performance
The side-to-side boom provides unmatched visibility to the working equipment and allows the machine to operate in confined areas.
TB280FR
Compact Mini Excavator
The TB280FR features a patented side-to-side (STS) offset boom combined with the tight tail swing for unmatched visibility to the work equipment and enables it to rotate fully with very little overhang. Its low center of gravity and optimized counterweight placement creates an extremely stable platform with lifting capabilities similar to that of a conventional machine.
Machine Specs and Dimensions
TB280FR Specs
| OPERATING PERFORMANCE | ||
|---|---|---|
| Operating Weight - Cab (Rubber) | 18,810 lb | (8,530 kg) |
| Operating Weight - Cab (Steel) | 19,240 lb | (8,730 kg) |
| Maximum Bucket Breakout Force | 16,335 lb | (7,409 kg) |
| Maximum Arm Digging Force | 7,037 lb | (3,192 kg) |
| Arm Length | 6 ft 7.0 in | (2,000 mm) |
| Slew Speed | 10.0 rpm | |
| Traction Force | 19,783 lb | (8,973 kg) |
| Ground Pressure - Cab (Rubber) | 5.5 psi | (38.1 kPa) |
| Ground Pressure - Cab (Steel) | 5.7 psi | (39.5 kPa) |
| Travel Speed - Low Range | 1.7 mph | (2.7 km / hr) |
| Travel Speed - High Range | 3.2 mph | (5.2 km / hr) |
| HYDRAULIC SYSTEM | ||
| Total Hydraulic Flow | 52.5 gpm | (198.0 L / min) |
| Auxiliary Flow - Primary Circuit | 39.0 gpm | (148.0 L / min) |
| Auxiliary Flow - Secondary Circuit | 15.0 gpm | (58.0 L / min) |
| Hydraulic System Pressure | 3,990 psi | (27.5 MPa) |
| ENGINE | ||
| Make / Model | Yanmar / 4TNV98CT | |
| Displacement | 202 cu in | (3.3 L) |
| Horsepower @2,000 rpm | 69.2 hp | (51.6 kW ) |
| Maximum Torque @ 1,300 rpm | 22.7.2 ft-lb | (308 Nm ) |
| FLUID CAPACITIES | ||
| Engine Lubrication | 9.9 qt | (9.4 L) |
| Cooling System | 14.8 qt | (14.0 L) |
| Fuel Tank Capacity | 26.3 gal | (100.0 L) |
| Fuel Consumption (65% of Full Load) | 2.5 gal / hr | (9.1 L / hr) |
| Hydraulic Reservoir Capacity | 18.7 gal | (71.0 L) |
| Hydraulic System Capacity | 38.8 gal | (147.0 L) |
TB280FR Dimensions
| MACHINE DIMENSIONS | ||
|---|---|---|
| Maximum Reach | 23 ft 7.2 in | (7,195 mm) |
| Maximum Reach at Ground Level | 23 ft 1.4 in | (7,045 mm) |
| Maximum Digging Depth | 14 ft 11.0 in | (4,540 mm) |
| Maximum Vertical Digging Depth | 11 ft 5.5 in | (3,495 mm) |
| Maximum Dig Height | 21 ft 2.0 in | (6,465 mm) |
| Maximum Dumping Height | 14 ft 8.4 in | (4,480 mm) |
| Front Swing Radius | 9 ft 5.4 in | (2,880 mm) |
| Front Swing Radius with Boom Offset | 5 ft 3.5 in | (1,610 mm) |
| Tail Swing (Slew) Radius | 4 ft 2.4 in | (1,280 mm) |
| Transport Length | 20 ft 7.4 in | (6,285 mm) |
| Transport Height | 8 ft 11.4 in | (2,725 mm) |
| Ground Clearance | 12.3 in | (315 mm) |
| Undercarriage Length | 9 ft 4.0 in | (2,855 mm) |
| Track Width (Rubber) | 17.7 in | (450 mm) |
| Undercarriage Width | 7 ft 7.0 in | (2,300 mm) |
Machine Features
TB280FR Features
| ENGINE |
|---|
| EPA Final Tier 4 Emission Compliant |
| Turbocharged |
| DOC+DPF Exhaust After Treatment |
| High Pressure Common Rail Fuel Injection |
| Automatic Fuel Bleed System |
| Dual Element Air Filter |
| Automatic Idle |
| Working Modes : Power and High Altitude |
| Engine Preheat Starting Aid |
| High Capacity Radiator and Hydraulic Oil Cooler |
| High Capacity Fuel Filters |
| ELECTRICAL |
| 5.7" Color Multi-Informational Display |
| Sealed Rocker Switches |
| 12 volt System with 80 amp Alternator |
| Halogen Work Lights: Boom and Cab |
| Travel Alarm |
| Horn |
| UNDERCARRIAGE AND FRAME |
| Triple Flanged Track Rollers |
| Automatic Load Sensing 2 Speed Travel |
| High Torque Planetary Final Drive |
| Auto Track Tensioning |
| Heavy Duty Dozer Blade with Float |
| Large Wraparound Counterweight |
| 17.7" Rubber Tracks |
| 17.7" Steel Tracks (optional) |
| 17.7" Segmented Rubber Tracks (optional) |
| OPERATOR'S STATION |
| Cab with Air Conditioner, Heat Defrost, Windshield Wiper and Washer, Skylight with Sunshade, AM / FM / MP3 Radio, 12v Power Outlet |
| ROPS and OPG Level 1 |
| Deluxe High Back Suspension Seat |
| Adjustable Arm Rests |
| 2" Retractable Seat Belt |
| 3" Retractable Seat Belt (optional) |
| HYDRAULIC & WORKING EQUIPMENT |
| Variable Displacement, Open Center Hydraulics |
| Cushioned Boom, Arm, and Swing Cylinders |
| Hydraulic Pilot Controls |
| Proportional Auxiliary Controls with Detent |
| Adjustable Auxiliary Flow |
| Large Hydraulic Reservoir with Fluid Level Sight Gauge |
| Primary and Secondary Auxiliary Hydraulic Circuit Plumbed to Arm |
| Multiple Attachment Presets |
| Flow Selector Valve, Primary Auxiliary Circuit |
| Pilot Accumulator |
| Pattern Change Valve (ISO or SAE) |
| Main Boom Cylinder Guard |
| Boom Holding Valve with Lift Overload Alarm |
| Long Arm |
| Full Rotation Capability and Patented STS Boom |
| Dual Pin Position Bucket (optional) |
| Mechanical Bucket Quick Coupler (optional) |
| Main Pin Hydraulic Thumb (optional) |
FEATURES AND BENEFITS
Full Rotation Design
- Unique STS boom and short tail swing design combine to make the FR series excavators an outstanding platform for work in urban areas, road and bridge construction, and other applications with limited space.
Operator Focused
- Unique STS boom and short tail swing design combine to make the FR series excavators an outstanding platform for work in urban areas, road and bridge construction, and other applications with limited space.
Function and Efficiency
- The variable displacement axial piston pump delivers smooth, harmonized control of the work equipment with no reduction in speed.
- The standard long arm provides you with a wider working range and dig depth.

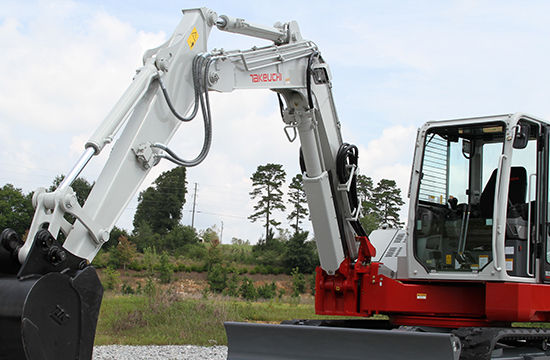

- Having three auxiliary circuits allows you to run a wide range of hydraulically driven attachments and have a dedicated hydraulic coupler circuit.
- High flow capabilities of the primary auxiliary circuit will allow you to operate a broader range of hydraulically driven attachments, such as mowers, mulchers, and plate compactors.
- Load sensing, two speed travel down shifts from low torque/high speed mode to high torque/low speed travel automatically when turning, pushing dirt, or traveling up an incline.
- Large slew bearing provides greater longevity and stability over the life of the machine.
- Cushioned cylinders improve longevity by reducing shock and they reduce felt recoil to the operator for greater comfort.
- Available case drain line kit is recommended for use with an excavator mulcher.
Takeuchi Fleet Management
- 2 Year Standard Service
- Minimize Downtime
- Remote Diagnostics
- Utilization Tracking
- Proactive Maintenance
- Control Costs
- Geofencing
Increased Protection
- All steel construction ensures body integrity through greater strength and rigidity and protects key components from damage.
- Heavy duty counterweight protects vital engine and hydraulic components from damage.
- Triple flange track rollers improve track life by providing greater support, and they feature multiple contact points that reduce the risk of de-tracking.
Ease of Maintenance
- Rear hood opens high overhead, and the right side cover swings open providing exceptional access to inspection and maintenance points.
- Tilting the cabin forward will enable you to access the control valve, slew motor, and engine.
Peace of Mind
- The safe start system requires the safety lockout lever be in the raised position in order to start the excavator ensuring hydraulic functions are inactive at start-up.
- The boom holding valve and overload alarm are designed to keep the boom from dropping if there is a sudden loss in pressure, and the overload alarm will sound (when ON) if you exceed hydraulic capacity.
- Available drop-in 1/2″ poly carbonate glass or heavy duty 1/2″ poly carbonate window guard with steel frame, and steel front guard group provide the added protection you need when using hydraulically driven attachments.
