Operator Comfort
The interior includes spacious floorboard controls, a 6 way adjustable high back air ride suspension seat, and an 8” color touch screen display with jog dial providing easy access to essential machine information and controls. The 270-degree camera system provides operators with peace of mind with its unmatched field of view around the rear and sides of the machine.
Serviceability
Serviceability is a top priority in the design of our products, and we have made it even easier by using the large lockable overhead service doors. These doors provide convenient access to essential components for maintenance and repairs, ensuring that technicians can quickly and efficiently address any maintenance needs.
Durability
The heavy-duty steel reinforced blade is designed with a box frame structure ensuring rigidity and durability. The unique shape of the blade, with its height and curvature, enables better material retention and prevents material from rolling back towards the machine.
Performance
The TB395W is equipped with a two-piece heavy-duty swing boom that enhances the machine’s versatility and productivity on the job site. This feature allows the operator to easily dig offset to both the right and left sides of the machine. The two-piece articulating boom extends the reach of the arm, enabling the operator to dig further away from the machine while also being able to dig closer to it when needed.
TB395W
Wheeled Mini Excavator
The Takeuchi TB395W wheeled compact mini excavator weighing 23,424 lbs. with a 114-horsepower engine, combines powerful excavating capabilities with a maximum dig depth of 13 ft 5.2 in and superior on-road performance, with speeds up to 18 mph. The standard two-piece, heavy-duty swing boom enables operators to dig further away from the machine and also allows for closer digging when needed, while the hydraulic outriggers and a dozer blade greatly enhance the machine’s stability. The TB395W is equipped with three auxiliary circuits catering to different hydraulic requirements. The primary circuit delivers an impressive 32 gpm, while the secondary circuit provides 14.5 gpm. The third auxiliary circuit is specifically designed for use with a hydraulic quick coupler. The TB395W features two different steering options: 2-wheel steer and 4-wheel/crab steer, allowing for precise maneuverability in various work environments. The interior includes an 8” color touch screen display with jog dial for easy access to essential machine information and controls. The 270-degree camera system gives operators greater peace of mind by providing an unmatched field of view around the rear and sides of the machine. The TB395W is the perfect blend of performance, durability, serviceability, and operator comfort, ensuring top-notch performance on the job site.
Machine Specs and Dimensions
TB395W Specs
| OPERATING PERFORMANCE | ||
|---|---|---|
| Operating Weight | 23,424 lb | 10,625 kg |
| Bucket Capacity (Heaped) | 1.5 cu yd | 1.15 m3 |
| Slew Speed | 9.7 rpm | |
| Travel Speed | ||
| Low Speed 1 | 3.5 mph | 5.6 km/h |
| High Speed 1 | 9.7 mph | 15.6 km/h |
| Low Speed 2 | 6.5 mph | 10.5 km/h |
| High Speed 2 | 18.1 mph | 29.1 km/h |
| Gradeability | 35° | |
| Maximum Bucket Digging Force | 13,241 lbf | 6,006 kgf |
| Maximum Arm Digging Force | 8,925 lbf | 4,048 kgf |
| Traction Force | 12,994 lbf | 5,894 kgf |
| Boom Swing Angle (Left/Right) | 68°/59° | |
| HYDRAULIC SYSTEM | ||
| Total Hydraulic Flow | 46.5 gpm | 176 L/min |
| Primary Auxiliary Flow | 31.7 gpm | 120 L/min |
| Secondary Auxiliary Flow | 14.5 gpm | 55 L/min |
| Third Auxiliary | 3,046 psi | 21 MPa |
| Hydraulic System Pressure | 3,988 psi | 27.5 MPa |
| Auxiliary 1 Pressure | 3,046 psi | 21 MPa |
| Auxiliary 2 Pressure | 3,046 psi | 21 MPa |
| ENGINE | ||
| Make/Model | DEUTZ/TCD3.6 L4 | |
| Rated Output (ISO 14396) | 114 hp | 85.0 kW / 2,200 min-1 |
| Maximum Torque | 339 ft lb | 460.0 Nm / 1,600 min-1 |
| Displacement | 221 cu in | 3,621 ml |
| Alternator | 28 V - 2.24 kW | |
| Battery (IEC 60095-1) | 12 v 90 A • h X2 | |
| FLUID CAPACITIES | ||
| Engine Lubrication | 10.6 qt | 10 L |
| Cooling System | 25.4 qt | 24 L |
| Fuel Tank Capacity | 42.8 gal | 162 L |
| Hydraulic Reservoir Capacity | 24.2 gal | 91.6 L |
| Hydraulic System Capacity | 54.1 gal | 205 L |
| DEF Tank Capacity | 2.6 gal | 10 L |
TB395W Dimensions
| WORKING DIMENSIONS | ||
|---|---|---|
| Maximum Reach | 25 ft 2.1 in | 7,675 mm |
| Maximum Reach at Ground Level | 24 ft 5.3 in | 7,450 mm |
| Maximum Digging Depth | 13 ft 5.2 in | 4,095 mm |
| Maximum Vertical Digging Depth | 11 ft 6.8 in | 3,525 mm |
| Reach at Maximum Digging Depth | 9 ft | 2,745 mm |
| Maximum Height at Cutting Edge | 27 ft 1.2 in | 8,260 mm |
| Maximum Dumping Height | 20 ft 5.7 in | 6,240 mm |
| Minimum Dumping Height | 8 ft 6.5 in | 2,605 mm |
| Reach at Maximum Height | 6 ft 11.9 in | 2,130 mm |
| Reach at Maximum Dumping Height | 7 ft 7.9 in | 2,335 mm |
| Dozer Blade Maximum Lifting Height | 15.7 in | 400 mm |
| Dozer Blade Maximum Lowering Depth | 5.9 in | 150 mm |
| Outrigger Maximum Lowering Depth | 5.9 in | 150 mm |
| MACHINE DIMENSIONS | ||
| Overall Length | 22 ft 3.3 in | 6,790 mm |
| Overall Width | 7 ft 7.3 in | 2,320 mm |
| Overall Height | 9 ft 10.9 in | 3,020 mm |
| Slew Radius | 5 ft 6.5 in | 1,690 mm |
| Clearance Height Under Upper Structure | 3 ft 7.9 in | 1,115 mm |
| Overall Width of Upper Structure | 7 ft 5.4 in | 2,270 mm |
| Overall Length of Undercarriage | 13 ft 8 in | 4,165 mm |
| Ground Clearance of Undercarriage | 12.6 in | 320 mm |
| Wheel Base | 7 ft 2.6 in | 2,200 mm |
| Dozer Blade Width | 7ft 6.5 in | 2,300 mm |
| Dozer Blade Height | 19.7 in | 500 mm |
Machine Features
TB395W Features
| ENGINE |
|---|
| EU Stage V / EPA Tier 4 Compliant |
| DOC+DPF+SCR Exhaust After Treatment |
| Automatic Fuel-Bleed System |
| Double-Element Air Cleaner |
| Automatic Deceleration |
| Working Modes: Standard and ECO |
| Engine Safety Start System on Left Console |
| Engine Auto Stop |
| Hydraulic Fan Drive for Radiator |
| UNDERCARRIAGE AND FRAME |
| 2-Wheel Steering (2WS) |
| 4-Wheel Steering (4WS): All-Wheel Steering and Crab Steering (optional) |
| Auto Cruise Control |
| Heavy-Duty Dozer Blade |
| Hydraulic Outriggers |
| Large Wraparound Counterweight |
| Check Valve, Dozer Blade |
| Front Axle Hub Brake |
| Parking Brake |
| Ram Lock |
| 100%-Locking Differential |
| Dual-Side Tool Box |
| Mud Guards |
| ELECTRICAL |
| 8” Color Touchscreen Display |
| Multi-Switch Control Pane & Jog Dial Control |
| E/H Control for Dozer Blade, Boom Swing and Dual Boom Cylinder Adjustment |
| LED Light Package; Right Cover, Boom, Front Cab, and Rear Cab |
| LED Head Lights, Turn Signals and Tail Lamps |
| LED Additonal Boom Light |
| LED Arm Position Lamp |
| Travel Alarm |
| Rear-View Camera |
| 270°-View Monitor |
| OPERATORS STATION |
| ROPS/FOPS |
| Air-Suspension Seat with Heat |
| Tiltable Steering Wheel |
| 2” Retractable Seat Belt |
| Cab with Automatic Climate Control System, Windshield Wiper and Washer, Skylight w/ Sunshade, 24V Power Outlet and DAB Radio with Bluetooth |
| Smartphone Holder with USB Port |
| OPG Level II Front Guard (optional) |
| HYDRAULIC |
| Load-Sensing Hydraulic System |
| Hydraulic Joystick Controls |
| Proportional Control for Secondary Auxiliary Flow |
| Detent for Primary Auxiliary Flow |
| Third Auxiliary for Quick Hitch |
| Auxiliary Hydraulic Circuit Plumbed to Arm |
| Adjustable Auxiliary Flow for Service Port 1, 2, |
| Auto Tank for Primary Auxiliary Flow |
| Service Port Performance Package; Auto Pressure Release for SP1 & SP2, pressure Adjustment for SP1 & SP2, and High Pressure for SP1 (optional) |
| WORKING EQUIPMENT |
| 2-Piece Variable Angle Boom |
| Cushioned Boom, Arm, and Swing Cyliders |
| Boom Swing Stopper |
| Boom-Holding Valve w/ Lift Alarm |
| Arm-Holding Valve |
| Two-Piece, Boom Adjust Holding Valve |
| TAKEUCHI FLEET MANAGEMENT |
| Downtime Reduction |
| Remote Diagnostics |
| Utilization Tracking |
| Proactive Maintenance |
| Cost Control |
FEATURES AND BENEFITS
Function and Efficiency
- The two-piece heavy-duty swing boom enhances the machine’s versatility and productivity on the job site.
- The two-piece articulating boom extends the reach of the arm, enabling the operator to dig further away from the machine while also being able to dig closer to it when needed.
- The 2-wheel steer option provides excellent maneuverability for tight spaces, while the 4-wheel steer with crab steer feature allows for seamless movement and positioning in confined areas.
- Large jobsites can be easily navigated with the TB395W. With an impressive 18” of ground clearance and 100% locking differential this machine can handle rough and uneven surfaces with ease.
Increased Stability

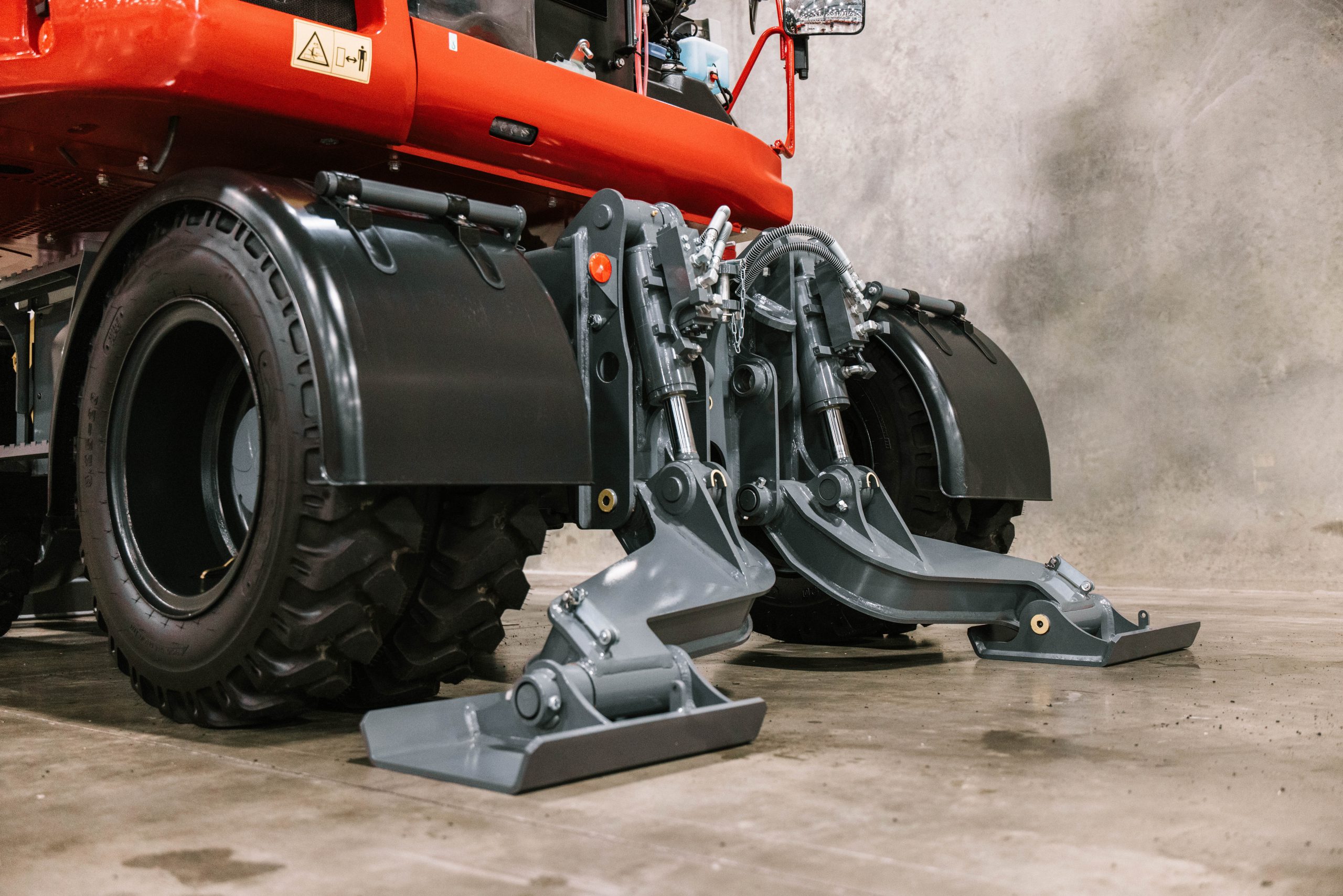

- Stability is greatly increased with the use of hydraulic outriggers and a dozer blade providing additional support and balance.
- The lockable digging brake and ram lock further contribute to improved stability by preventing unwanted movement and ensuring that the machine stays in place while digging.
- Wheel chocks are included to ensure that your machine stays in place while parked.
Operator Focused
- The spacious floorboard controls include Swing Boom and Dual boom Control pedal, lockable digging break, foot throttle, and the 2 way adjustable steering column.
- It is equipped with a 6 way adjustable high back air ride suspension seat, ensuring maximum comfort and support for the operator during long hours of use.
- The 8” inch color touch screen display with Jog dial is a powerful tool that provides easy access to essential machine information and controls.
Peace of Mind
- The 270-degree camera system provides operators with peace of mind with its unmatched field of view around the rear and sides of the machine.
- The LED head lighting package both front and rear enhance visibility in low light conditions.
- Auto cruise control is a valuable feature that allows operators to set and adjust travel speed, whether in low or high range, through the convenient rocker switch set button.
Ease of Maintenance
- Large lockable overhead doors provide convenient access to essential components for maintenance and repairs, ensuring that technicians can quickly and efficiently address any maintenance needs.
- Rear service access includes Pilot filter, DPF and SCR, hydraulic pumps, oil fill and filter, Dip Stick, Engine access, cooling package and fan.
- Right side service access includes fuel filter, dual element air cleaner, hydraulic tank, battery access, control valve, fuel tank and fuel fill, DEF tank and DEF fill, washer fluid, and pattern change valve.
Takeuchi Fleet Management
- 2 Year Standard Service
- Minimize Downtime
- Remote Diagnostics
- Utilization Tracking
- Proactive Maintenance
- Personalized Fault Alerts
- Control Costs
- Geofencing
