Operator Comfort

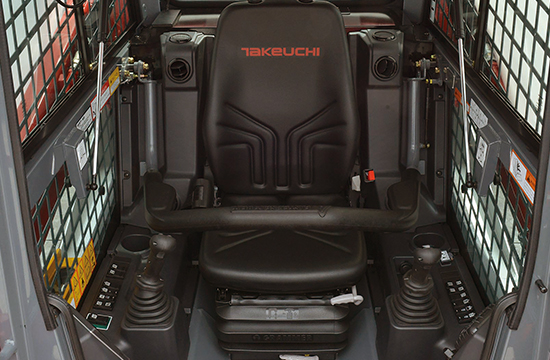

The automotive styled interior on the TL12V2 features a spacious cabin, improved functionality, updated rocker switch layout, 12v accessory outlet, and multiple cup holders.
Serviceability
The simplified battery access on the TL12V2 is available through a bolt-on panel located on the left tower.
Durability
Heavy duty lift cylinders on the TL12V2 are over built for greater durability and deliver excellent lifting performance.
Performance
The TL12V2 is designed with a vertical lift loader built to deliver exceptional performance and improved tipping load and rated operating capacity.
TL12V2
Compact Track Loader
The TL12V2 features a vertical lift track loader arrangement and sets another benchmark for compact track loaders by delivering one of the most capable and innovative machines available to the market today. The cab has been enlarged and features a smooth low-effort overhead door design for improved entry and egress. A quiet ride track design with flotation pads reduces vibration, noise levels, and improves ride quality.
Machine Specs and Dimensions
TL12V2 Specs
| OPERATING PERFORMANCE | ||
|---|---|---|
| Operating Weight - Canopy | 12,860 lbs | (5,835 kg) |
| Operating Weight - Cab | 13,190 lbs | (5,985 kg) |
| Tipping Load | 11,737 lbs | (5,324 kg) |
| Rated Operating Capacity @ 35%* | 4,107 lbs | (1,863 kg) |
| Operating Load @ 50% of Tip Load | 5,868 lbs | (2,662 kg) |
| Bucket Breakout Force | 7,874 lbs | (3,571 kg) |
| Lift Arm Breakout Force | 7,109 lbs | (3,225 kg) |
| Traction Force | 14,006 lbs | (6,353 kg) |
| Ground Pressure | 4.8 psi | (33.0 kPa) |
| Travel Speed - Low | 5.0 mph | (8.1 km / hr) |
| Travel Speed - High | 7.3 mph | (11.6 km / hr) |
| *Rated operating capacity of track loaders is rated according to SAE J818 at no more than 35% of the tipping load. | ||
| HYDRAULIC SYSTEM | ||
| Auxiliary Flow - Primary Circuit | 23.2 gpm | (88.0 Lpm) |
| Auxiliary Flow - High Flow (optional) | 40.4 gpm | (153.0 Lpm) |
| Auxiliary Flow - 2nd Circuit (optional) | 23.2 gpm | (88.0 Lpm) |
| Hydraulic System Pressure | 3,481 psi | (24.0 MPa) |
| ENGINE | ||
| Make / Model | Kubota / V3800-TIF4B | |
| Engine Displacement | 230 cu in | (3.8 L) |
| Horsepower @ 2,400 rpm | 111.3 hp | (83.0 kW) |
| Maximum Torque @ 1,500 rpm | 284 ft-lb | (385 Nm) |
| FLUID CAPACITIES | ||
| Engine Lubrication | 13.9 qt | (13.2 L) |
| Cooling System | 19.0 qt | (18.0 L) |
| Fuel Tank Capacity | 32.7 gal | (123.9 L) |
| DEF Fluid Tank Capacity | 4.8 gal | (18.0 L) |
| Fuel Consumption (65% of Full Load) | 3.8 gal / hr | (14.4 L / hr) |
| Hydraulic Reservoir Capacity | 13.2 gal | (50.0 L) |
| Hydraulic System Capacity | 20.6 gal | (78.0 L) |
TL12V2 Dimensions
| MACHINE DIMENSIONS | ||
|---|---|---|
| Max. Lift Height to Bucket Pin | 10 ft 10 in | (3,299mm) |
| Dump Height Fully Raised | 8 ft 1.0 in | (2,459 mm) |
| Max. Mid-Height Reach | 4 ft 8.0 in | (1,416 mm) |
| Dump Reach Fully Raised | 3 ft .4 in | (924 mm) |
| Dump Angle | 46.8° | |
| Rollback Angle | 32° | |
| Track Ground Contact Length | 5 ft 7.6 in | (1,717 mm) |
| Machine Length | 10 ft 6.0 in | (3,203 mm) |
| Transport Length | 13 ft 3.3 in | (4,045 mm) |
| Transport Height | 7 ft 9.7 in | (2,381 mm) |
| Departure Angle | 29° | |
| Clearance Circle with Bucket | 8 ft 2.6 in | (2,504 mm) |
| Clearance Circle without Bucket | 5 ft 3.4 in | (1,610 mm) |
| Clearance Circle Rear | 6 ft 1.0 in | (1,848 mm) |
| Track Width | 17.7 in | (450 mm) |
| Ground Clearance | 12.2 in | (310 mm) |
| Overall Width without Bucket | 6 ft 5.2 in | (1,960 mm) |
Machine Features
TL12V2 Features
| ENGINE |
|---|
| EPA Final Tier 4 Emission Compliant |
| Turbocharged and Intercooled |
| DOC+DPF+SCR Exhaust After Treatment |
| High Pressure Common Rail Injection System |
| Active Power Control Power Management System |
| Selectable Work Modes - Power and ECO |
| Dial Throttle Control |
| Automatic Fuel Bleed System |
| Extended Life Coolant |
| High Capacity Radiator, Hydraulic Oil Cooler and Intercooler Mounted Side-by-Side on Swing Out Frame |
| Duel Element Air Cleaner |
| ELECTRICAL |
| 12 volt System with 80 amp Alternator |
| Heavy Duty, Quick Access Battery |
| LED Work Lights, Front and Rear |
| Sealed Rocker Switches |
| Back-up Alarm |
| Horn |
| UNDERCARRIAGE AND FRAME |
| 17.7" Quiet Track Design with Wide Block Tread |
| Long Track Frame |
| Fully Welded Frame with Integrated Cross Members |
| Rear Bumper Integrated into Frame |
| Front and Rear Tie-Down and Lift Points |
| Permanently Sealed Track Rollers with Metal Face Seals |
| Double Reduction Planetary Drives |
| 2 Speed Travel |
| OPERATOR'S STATION |
| 5.7" Color Multi-Informational Display with Rear Camera |
| Pilot Operated Controls |
| Deluxe High Back Adjustable Suspension Seat |
| Rear Pivoting Seat Bar with Integrated Arm Rests |
| ROPS/FOPS Structure |
| Retractable 2" Seat Belt |
| 3 Point Seat Belt (optional) |
| FOPS Level 2 Roof Guard (optional High Flow) |
| Polycarbonate Front Door (optional High Flow) |
| Pressurized Cab with Roll-up Door, Air Conditioning, Heat, Defrost, Front/Rear Wiper and AM/FM/MP3 Radio (Cab Only) |
| HYDRAULIC & WORKING EQUIPMENT |
| Vertical Lift Loader Design |
| Heavy Duty Low Cross Member |
| Cushioned Boom Cylinders |
| Boom Float with Detent |
| Hydraulic Pilot Controls |
| Proportional Auxiliary Controls with Detent |
| Pressure Relieving Flat Faced Coupler Body |
| Hydraulic Self Leveling (ON/OFF) |
| Mechanical Quick Coupler |
| Hydraulic Quick Coupler (standard on cab units) |
| 14-Pin Connector with Push Button Control (optional) |
| Primary Flow Auxiliary Hydraulics 23.2 gpm |
| High Flow Auxiliary Hydraulics 40.4 gpm (optional) |
| Secondary Auxiliary Circuit 23.2 gpm (optional) |
| Ride Control (optional) |
| Control Pattern Change Valve (ISO or H) (optional) |
FEATURES AND BENEFITS
Vertical Lift Loader Design
- Excels at load and carry applications
- Greater rated operating capacity (ROC)
- Higher hinge pin height and full dump reach
All Steel Construction
- Increases strength and rigidity while protecting vital engine and hydraulic components.
- Model Specific undercarriage components with larger bearings result in slower shaft speed extending the life of the components.
Deluxe Operator Station
- The 5.7″ Multifunction Color Display provides machine health and vitals while also allowing the operator to control a multitude of machine features and functions.
- Rear View Camera adds peace of mind with real time view of the rear of the machine.
- Deluxe High Back Adjustable Suspension reduces operator fatigue while providing greater visibility to the work equipment.
- Pressurized Cab helps cut down on debris inside cabin improving air quality.
- Roll-up Door allows the machine to operate with the door open or closed regardless of loader arm position.
Takeuchi Fleet Management
- 2 Year Standard Service
- Minimize Downtime
- Remote Diagnostics
- Utilization Tracking
- Proactive Maintenance
- Control Costs
- Geofencing
Heavy Duty Undercarriage
- Features double and triple flange track rollers that maintain at least two points of contact at all times making the machine less susceptible to detracking.
- Quiet-ride track design greatly reduces noise and vibration improving ride quality.
Ease of Maintenance
- Tilt up operators station, heavy duty rear door, and large lockable service hoods provide easy access to daily maintenance and service points.
- Large Side by side cooling module swings out to easily clean both sides of the radiator keeping the hydraulic system running cool and efficiently.
Auxiliary Hydraulic System
- 23 GPM standard with optional 40 GPM High-Flow system allows for maximum attachment versatility.
- High Capacity radiator and hydraulic oil cooler help maintain lower oil temperatures while running hydraulic attachments.
Additional Guarding
- 1/2″ Polycarbonate door and Level 2 Top Guard keep the operator protected from flying and falling debris.
- Heavy Duty Steel Door and integrated bumper help protect vital engine components.
- Hydraulically Driven Winch and bumper kit available for additional protection and added peace of mind in unstable soil conditions.
